Trailer Information:
|
|
Year:
|
2026
|
|
Make:
|
Cimarron
|
|
Model:
|
Norstar 4 Horse Living Quarters w/ WERM flooring!
|
|
Price:
|
$193,775
Check the Bluebook
|
|
Location:
|
Redmond,
OR
(97756)
|
|
Horses:
|
4
|
|
Pull Type:
|
|
|
LQ:
|
Yes
|
|
Stock #:
|
17223
|
|
Description:
|

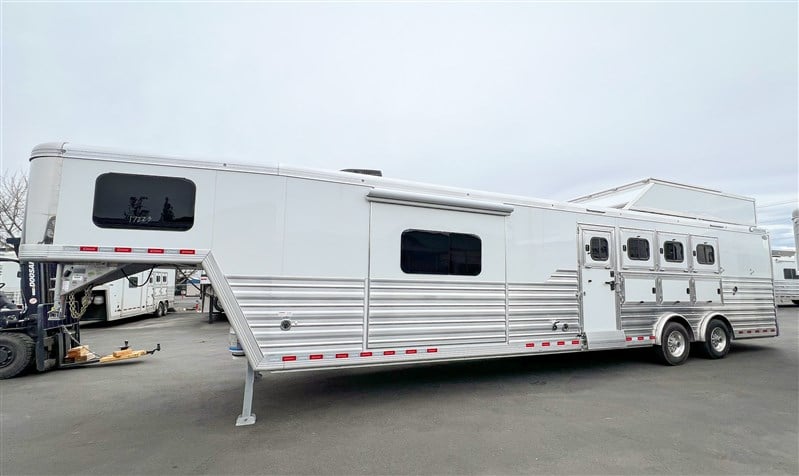

2026 Cimarron Norstar 4 Horse Living Quarters w/ WERM flooring!
Stock # 17223
7’7’’ Tall x 8’ Wide x 35’3’’ Long (floor)
15’6’’ Short wall in living quarters
GVWR: 20,000 lbs
Empty/Shipping Weight: 10,500 lbs
TRAILER FEATURES:
*10,000 lb Dexter torflex axles - 8 bolt hubs w/ 5/8’’ studs
*Electric/hydraulic brakes
*Continental 245/70 R17.5’’ tires
*Tapered nose profile w/ 18’’ rounded corners
*Polished stainless steel nose sheet
*Extruded aluminum sides
*White side sheets
*Insulated roof panel
*9100 series electric awning up to 21’ length
*LED full color awning light with remote control up to 21’ length
*Extruded aluminum floor w/ V-truss & cross members every 4’’
*HD-Bottom rail
*Holdbacks on all doors & gates
*8’ roof hay pod
*5.5KW EFI gas generator with fuel tank, gas gauge, transfer switch, and remote start
*EZ angle ladder located on left rear door
*Exterior and interior tie rings
*Dual hydraulic jacks
*LED tail lights
*LED running lights
*Aluminum battery box w/ battery
*Spare tire and rim on exterior mount
*32’’ access door with sliding drop window and recessed paddle latch
*Drop down feed doors w/ safety bars on head side
*Drop down feed doors w/o safety bars on butt side
*Side-load ramp
*50/50 rear dual doors
*Rear full tack
*Rear width steps
*Manger storage compartments
*WERM flooring
*Stainless steel exterior fasteners
*3 year full coverage warranty
LIVING QUARTERS FEATURES:
*Solid maple trim and cabinets throughout
*Solid wood window trim
*Crown molding throughout
*Chair rail in living area and bathroom
*Solid wood raised panel cabinet doors
*Laminate countertops with solid wood edges
*Side cabinets at the front of the gooseneck area with center console
*Control panels behind cabinet door in overhead
*Overhead cabinet above sofa & kitchen base
*6 cu.ft. 2-way 120-volt refrigerator with electronic ignition
*Built-in convection microwave
*Flip-up counter top
*Pull-out pantry
*Medicine cabinet with mirror in bathroom
*Up to 6 drawers with ball bearing soft close drawer guides
*Mirrored solid wood bathroom door
*Closet in the Gooseneck at drop wall
*Full height Cabinets in bathroom and Main LQ area
*15,000 BTU non-ducted air conditioner with heat pump
*20,000 BTU forced air ducted furnace
*Solid wood AC cover
*Microwave with flip-up door & 120 volt outlet
*(2) burner cook top with LP gas
*TV prep with 120-volt outlet and TV booster ready
*TV antenna with wire and backer plate in roof
*AM/PM stereo with two speakers in main LQ area and two exterior speakers
*Upgraded 12-volt non-lighted bath fan
*LP/electric refrigerator with doors to enclose & clothes rod
*3/4" Tongue & groove subfloor with 50 Year water-resistant warranty
*Commercial grade vinyl flooring
*Carpeted Gooseneck floor
*R-6 Insulated floor throughout, including gooseneck
*R-11 Insulation in walls & ceiling
*Leather touch walls and ceiling throughout
*Wood veneer lower panel walls to match cabinets
*Carpeted Step or Boot box cover
*Large double steps with storage into gooseneck
*8" Memory Foam mattress (60" x 80")
*Sofa-sleeper
*Dinette-sleeper
*Fire extinguisher
*Smoke, LP & CO2 Detectors
*Reading lights in gooseneck on switch
*Recessed LED ceiling lights throughout
*Light under sofa and kitchen overhead cabinet
*LED lighted grab handle & logo
*LED exterior 12-volt porch light
*Hook up light under gooseneck area
*Black receptacles and switches throughout
*30-AMP shore cord inlet and cord
*120/12-volt 55 AMP power converter
*Single group 27 deep cycle battery
*Coach monitoring system
*12-volt & 120-volt receptacle at center console in gooseneck area
*120-volt exterior GFCI-protected receptacle
*30-AMP main breaker and fuse panel
*Energy management system on 30-AMP
*Heat shrink terminals on all exterior electrical connections
*On-demand pressure water system tested at 80 PSI
*Auto light 6 Gallon gas water heater
*Porcelain toilet
*Sewer hose & holder under gooseneck
*Largest possible fresh water tank
*Largest possible waste tanks with 90 degree termination valves
*Oversized 34’’ neo radius shower
*Shower pan with one-piece surround
*Glass Shower door
*Sky dome above shower
*Upgraded brushed nickel or matte black faucets
*Stainless steel sink(s) sized per floor plan
*Outside water spigot located under gooseneck
*Dual 20# LPG Tanks with auto change regulator
*Black iron LP main line with flex gas lines to all appliances
*Brushed nickel or matte black hardware & lighting
*Stainless Steel or Black Appliances
*Solid Wood window valances
*Upholstered panels on entry and pass-through door
*Roll up night shades on all windows
*Snap cover on entry door window
*Wood cowboy hat rack above entry door
*Walk-thru door to horse area
HORSE AREA:
*Side-load ramp
*LED light above loading door
*WERM flooring
*48’’ rubber lined walls
*Padded dividers
*Insulated roof
*Pop-up vent per stall
*Mangers
*Drop-down feed windows
*Stud divider in first stall
*Escape door w/ step
*Full rear tack area
*Carpeted walls
*Rubber mat flooring
*Interior lighting
*Metal shelves for storage
*Saddle rack
*Blanket rack
*Bridle hooks
KMR has a Full Service Shop for all your Accessory Needs!
Generators * Hay Racks * Ramps * Water Tanks * & More!
Financing Available.
Trade-In Welcome.
All credit card transactions will be charged a 3% Surcharge.
Please Give KMR a Call at 541-389-7857 or email kmrtrailers@gmail.com
(We are human, ads subject to error.)
|
|
Features:
|
- Has mangers
- Drop Downs on Buttside
- Insulated Roof
- LQ Pass Through Door
- Ramp
|
|
LQ size:
|
Short Wall - 11' or more
|
|
Length:
|
35' 3"
|
|
Weight (GVWR):
|
20000 lbs
|
|
Weight (Hitch):
|
0 lbs
|
|
