2026 CIMARRON TRAILERS NS3G-13'8 SIDE LOAD

Stock# 45233

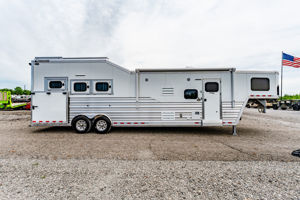

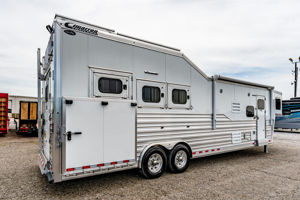

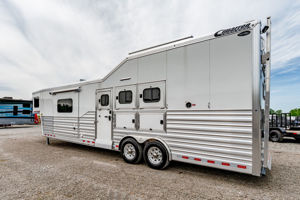

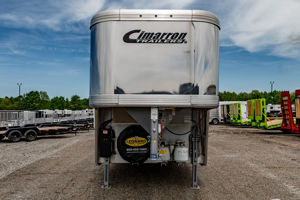

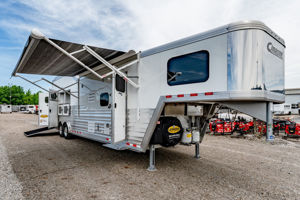

New 2026 Cimarron NS3G-129 SL Gooseneck Horse Trailer with Living Quarters

Cimarron Norstar aluminum horse trailers are engineered to be durable and safe. Bumper pull or gooseneck configurations ensure effortless towing and comfort.

Model:  NS3G-129 SL

Warranty:

• 8yr- Structural
• 3yr-Body and Hardware

Dimensions & Structure

• Box length: 30'-3"

• Box width: 8'-0"

• Box height: 7'-10"

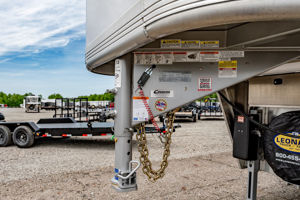

• Gooseneck length: 8'-2"

Undercarriage

• GVWR: 16,000 lb

• Axles: Two 8,000 lb Dexter Torflex, 8-bolt hubs w/ 5/8" studs, 0° articulation

• Brakes: Electric/hydraulic, disc (8K)

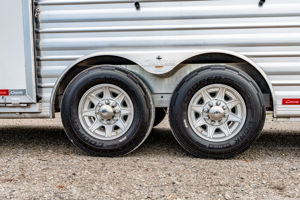

• Tires: Cooper 245/70R17.5, LR-J

Tie Rings

• Interior: 12 | Exterior: 12

Front Tack / Rooms

• Front tack wall: Solid partition, full height & width, straight wall

• Primary door: 29" wide × standard height (RH)

• Secondary door:22" wide x standard height

• Floor: unfinished

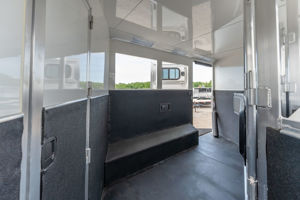

Stall / Load Space

• Stall area length (LH): 10'-6" | (RH): 10'-6"

• Width: 8'-0"

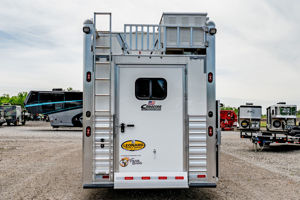

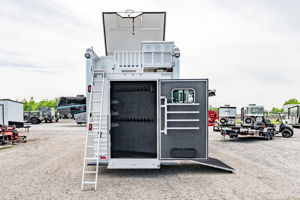

• Rear opening: Single rear door w/ partial wall

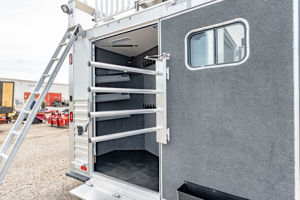

• Access door: 32" access door w/ feed door & SBG, LOC: LH

• Feed doors: Head-side fold-down type, with safety bars

• Windows

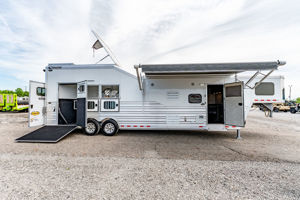

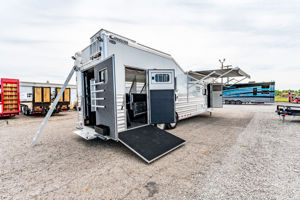

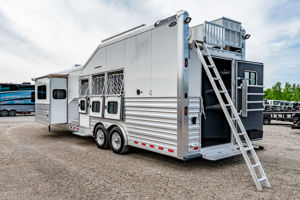

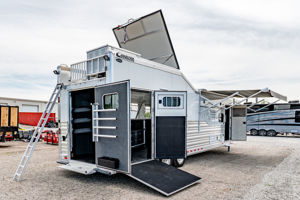

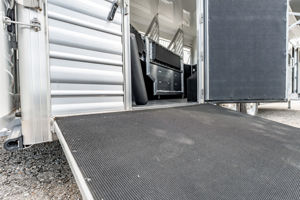

• Side ramp: Over side access door 65"x57"

Lining & Mats

• Kick mat: 54" high, .090" PL, insulated on RH wall& rear

• Kick mat: 48" high, .090" PL, insulated on LH wall & front wall

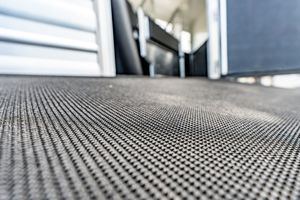

• Floor mat: Removable VET type

• Wall lining: Double wall & insulated at kick mats with .050 white above

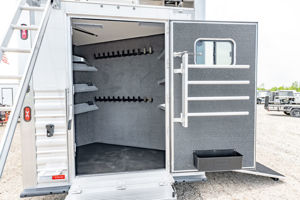

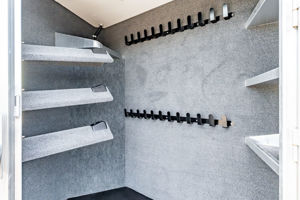

Tack Storage

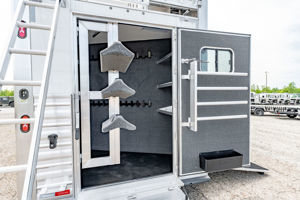

• Saddle racks: 3 adjustable pads;swing out

• Blanket poles: 4 Poles-swing out

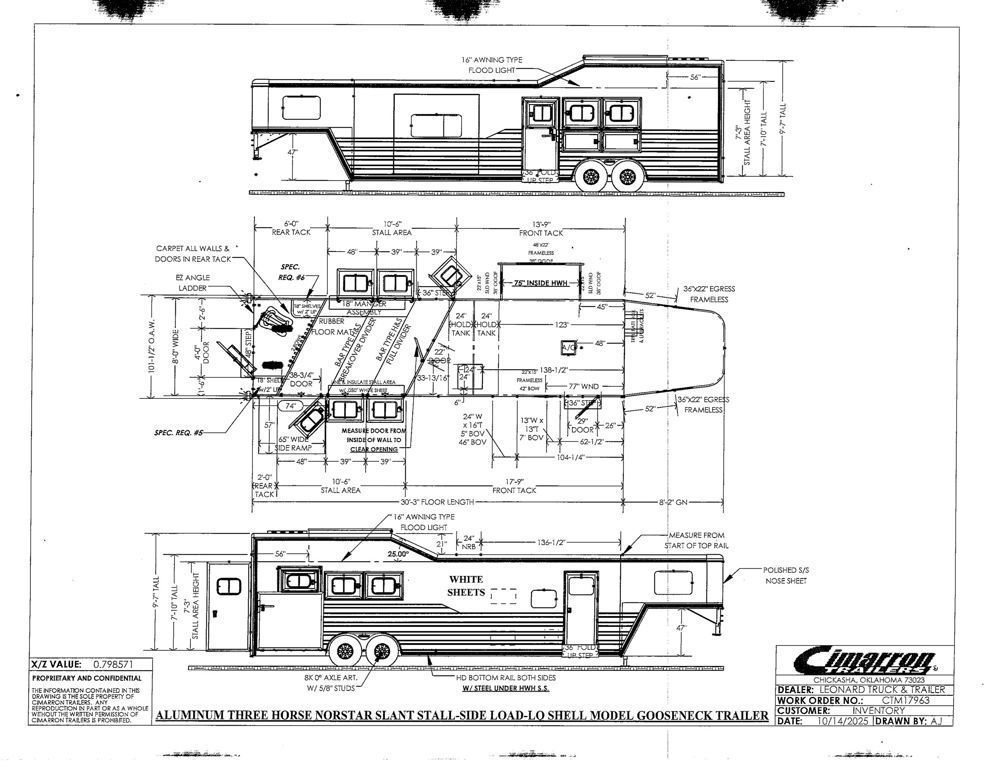

Special Requirements

1. Add recessed paddle latch on side access door

2. Side access door 39" on RH side of #3 stall of side load

3. #3 stall is 48" wide for side load

4. carpet all walls & doors of full rear tack

5. Shelf 18" w/2" lip custom 3 shelves on RH wall in tack room

6. Rear tack door is 48" & offset

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**

• Has Slides/Glides
