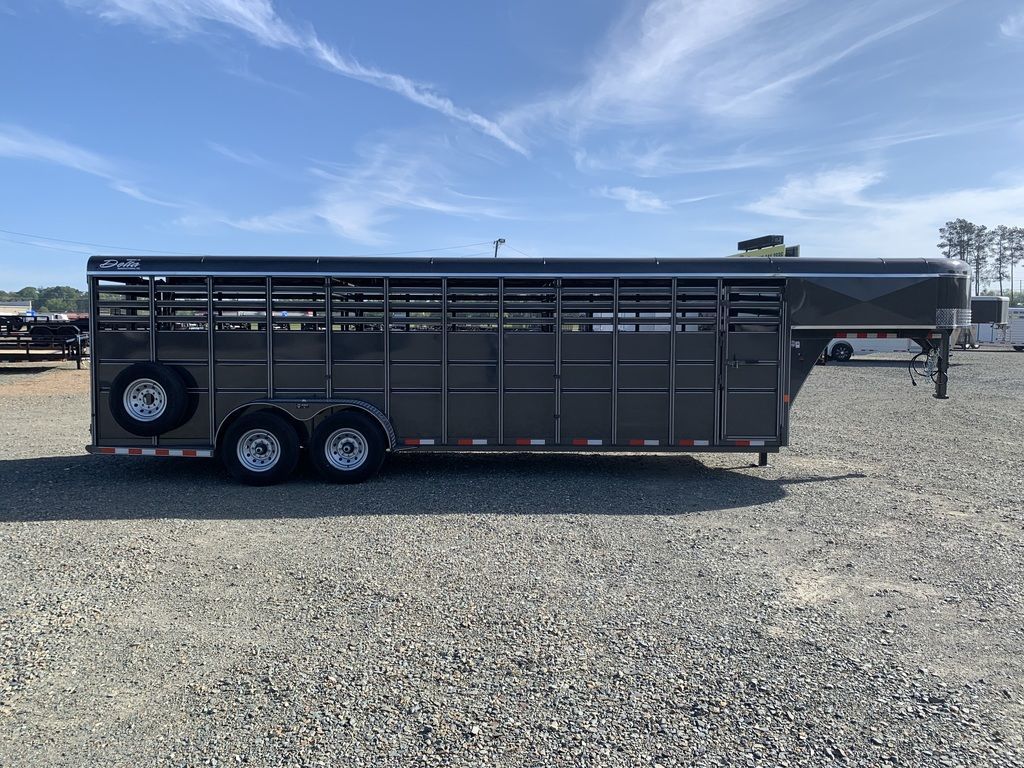

2026 Delta Trailers 600 Heavy Duty 24’

2026 Delta Trailers 600 Heavy Duty 24

Our 600 Heavy Duty livestock trailer is built extra tough for commercial use. It comes with tandem 7,000 lb. Dexter axles and our unique slam latch gate system. It is available with optional aerodynamic nose designs. The 600 Heavy Duty comes standard at 6 feet wide by 6 1/2 feet tall, but is available in various widths and lengths.

The 600 Heavy Duty features a heavy duty full swing rear gate with 1/2 slider on rollers, full escape door, aluminum diamondplate trim, quad tail-lights and full spare. The pressure-treated wood floor is screwed to the frame crossmembers.

• G.V.W.R: 14,000 lbs

• Coupler: 2 5/16” Gooseneck Coupler

• Axles: Tandem 7,000 lbs

• Suspension: Dexter Torflex

• Brakes: Electric Brakes on All Axles

• Tire: 16” Radial

• Wheel: 16”, 8-bolt

• Spare: Full Spare with Carrier

• Frame: 3 x 3 Angle

• Gooseneck: 6” Channel

• Crossmembers: 2 x 2 Angle on 16” Centers

• Jack: 12,00 lbs Drop Leg Jack (Spring-Loaded)

• Floor: 2” Pressure Treated Pine

• Sides: 48” High Embossed, 16 Gauge

• Side Uprights: 1 x 2 Tubing on 20” Centers

• Side Door: Full Escape Door

• Roof: 18 Gauge Metal with Bows on 24” Centers

• Roof Radius: 6” Roof Radius

• Nose Cap: Round or Square

• Safety Chains: 5/16” Heavy Duty with Safety Latch Hooks

• Center Gate: Heavy Duty Gate with Spring-Loaded Slam Latch

• Rear Door: Heavy Duty Full Swing with 1/2 Slider

• Rear Opening: Tubing Uprights with Slam Latch for Gate

• Gooseneck Gate: Standard Gooseneck Gate

• Fenders: Steel Teardrop

• Wiring: 14 Gauge in Conduit with Junction Box

• Electric Plug: 7-Way RV Style

• Interior Lights: Standard Dome Lights

• Exerior Lights: All DOT Required Lighting plus Quad Tail Lights

• Pre-Prep: 3-Step Acid Washed with Phosphorus Solution

• Prep: Exterior Joints and Interior Roof Sealed

• Primer: Rust Resistant Epoxy Primer

• Paint: Baked-on High Solid Urethane

• Pinstripes: Painted Pinstripes

• Deck Height: Approx. 14”

• Gravel Guard: Aluminum Diamondplate

• Reflective Tape: Required D.O.T. Reflective Taping

• Safety: Emergency Breakaway Switch & Battery Backup
