2026 CIMARRON TRAILERS NS3G-RTG-K

Stock# 44350

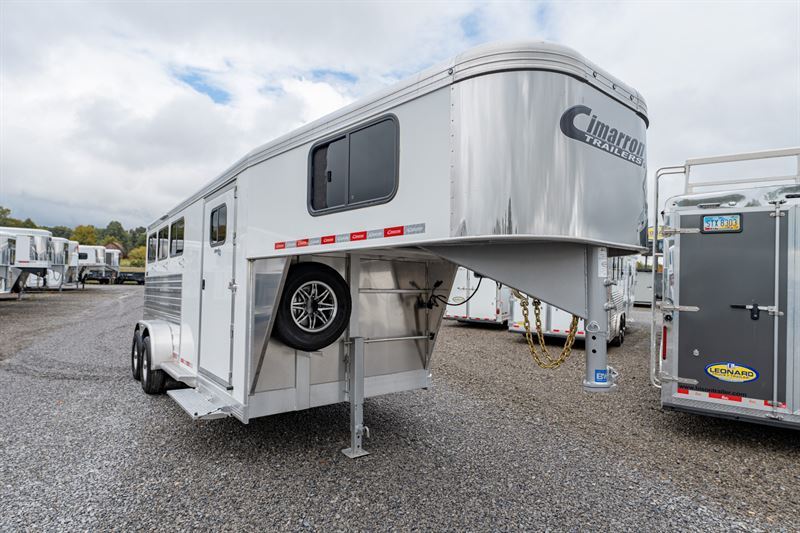

New 2026 Cimarron NS3G-RTG-K Gooseneck Horse Trailer

Cimarron Norstar aluminum horse trailers are engineered to be durable and safe. Bumper pull or gooseneck configurations ensure effortless towing and comfort.

Model: NS3G-RTG-K

Warranty:

• 8yr- Structural
• 3yr-Body and Hardware

Overall Equipment

Wall Construction:

• Extra Double Wall (Stall Area): 0
• Extra Single Wall (Front Tack): 0.25

Dimensions:

• Box Length: 18' - 0"
• Box Width: 6' - 10"
• Box Height: 7' - 1"
• Gooseneck (GN) Length: 8' - 2"
• GN Drop Wall: 53" (For extreme 4x4 clearance)
• GN Structure: Standard Duty

Undercarriage:

• GVWR: 12,000 lbs
• Axles: 6,000 lb Dexter Torflex Axles (8 Bolt Hubs with 1/2" Studs) - Qty: 2
• Axle Articulation: 10 Degree Up
• Brakes: Electric (All Wheel)
• Tires: Goodyear ST 235/80 R16" LR-E - Qty: 5
• Wheels: 8-Hole Aluminum Black Spoke 16" - Qty: 5

Trim:

• Fender Edge Molding: NO
• Lower Body: Running Boards, Full Length

Coupler:

• Type: 2-5/16" Positive Lock with Adjustable Height Stem (GN Standard)

Design:

• Nose Profile: Tapered Sides with 18" Radius Corners
• Nose Sheet: Polished Stainless Steel
• Side Walls: Extruded Side Slat @ Stall Area
• Sheet Color: WHITE
• Exterior Extrusions: Mill Finished
• Fenders: Tear Drop
• Overall Width: 102" O.A.W.
• Roof Material: Insulated Roof Panel

Flooring:

• Type: Extruded Aluminum with V-Truss & Cross Members Every 4"
• Bottom Rail: STD-Bottom Rail

Hardware:

• Hold Backs: All Doors & Gates
• Tie Rings:
  • Interior: 6
  • Exterior: 6
  • Total: 12

Jacks & Parking:

• Type: Standard Single Speed with Drop Shoe

Exterior Lights:

• Back-Up LED Lights: 4
• Tail Lights: LED with Red Lens (Qty: 4)
• Marker Lights: LED Button Type (Qty per side on top rail: 4)
• Flood Lights: LED Awning Light 8" (Qty: 1)

Walls:

• Front Tack Room: Solid Partition Wall, Full Height & Width
• Rear Tack Room Arrangement: 60/40

Front Tack Room Equipment

• Size:
  • Length (LH): 3' - 8"
  • Length (RH): 7' - 8"
  • Width: 6' - 10"

Doors:

• Primary Door: 42" Wide x Standard Height (RH)

Flooring & Carpeting:

• Carpet/Floor Mat: Rubber Mat Floor, Carpet on GN Wall & Deck

Windows:

• Sliding Type:
  • 15" x 22"
  • 19" x 34"

Stall Area / Load Space Equipment

Size:

• Length (LH): 14' - 4"
• Length (RH): 10' - 4"
• Width: 6' - 10"

Rear Opening:

• Type: Double Doors - Independent, No Post
• Latch Type: Stainless Steel Cam Lock

Doors:

• Access Doors: 32" Access Door with Feed Door & SBG (LH)
• Feed Doors: Head Side - Fold Down Type
  • Options: With Safety Bars

Dividers:

• Type: Solid Type

Manger Assembly:

• Doors & Compartment Lights: Included

Lining:

• Kick Mat:
  • 48" High with .090 PL & Insulation
  • 54" High with .090 PL & Insulation
• Floor Mat: Removable VET Type
• Wall Lining: Double Wall & Insulation at Kick Mats with .050 White Above

Hardware:

• Dome Lights - Optibrite LED: (LS - RH)
• Bridle Hooks (Set of 6): (FT)

Special Requirements

1. 25 Gal. Water Tank with Standard Hose in Front Tack
2. Add Recessed Paddle Latch on Side Access Door

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**
