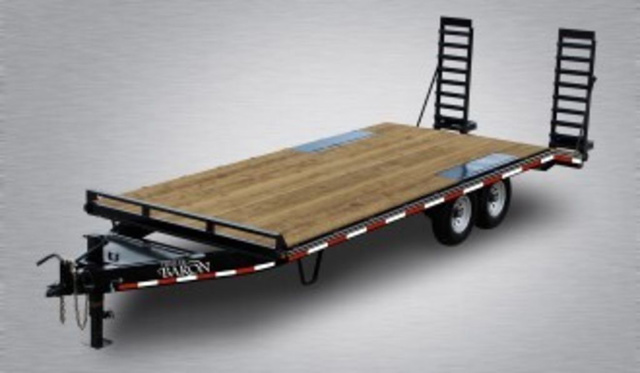

23 ft. (19'+4')Cold form continuous tongue (no notching or heating), heavier main frame I-beams and side rails with 16? cross member spacing allow a higher GVWR rating, radial tires, toolbox with lockable lid, LED rubber mounted sealed beam lighting in enclosed boxes with sealed modular wiring harness.GVWR 16000 lb. â?? Capacity 12800 lb. with 3200 lb. HitchloadTreated wood deck96" wood deck 101.5" to outside of rubrails7000 lb. braking axles with 4 wheel brakesSlipper spring suspension235/80 R16 load range E 10 ply rating RADIAL tires10â?? I-beam frame (W10x12)6" flat bar side rails3" channel cross members â?? 16" spacingCold form continuous tongue (no notching or heating)Toolbox with lockable lid built into tongue5 ft. swing-up ramps with support foot2 5/16" three bolt HD cast iron adjustable coupler or pintle ring (same price for either)12000 lb. drop-foot jackMetal plate over wheels for lowest possible loaded deck height (34")Stake pockets and rubrailSelf charging break away kit, safety chains, full DOT reflective tape and all rubber mounted LED sealed beam lighting with U.S made sealed modular harness with 5 year warrantyPrimed, 2 coats of automotive grade enamel, pin stripe
For Assistance at the Pennsylvania Lot call 1-800-352-1565 and ask for Jeff or Joey. For Assistance at the Ohio Lot call 1-866-410-7744 and ask for Chip.
