2026 CIMARRON TRAILERS NS6GHH

Stock# 44835

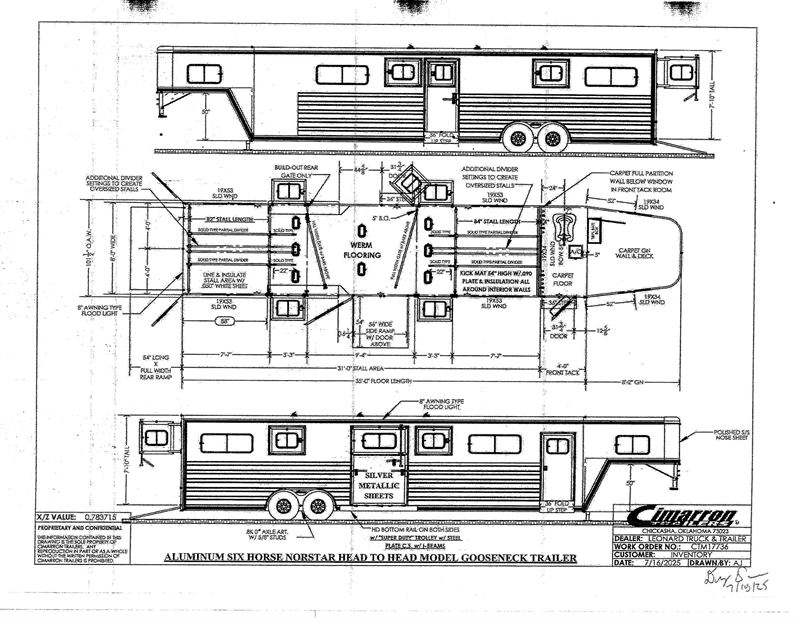

New 2026 Cimarron NS6GHH Gooseneck Horse Trailer

Cimarron Norstar aluminum horse trailers are engineered to be durable and safe. Bumper pull or gooseneck configurations ensure effortless towing and comfort

Model:  NS6GHH

Warranty:

• 8yr- Structural
• 3yr-Body and Hardware

Dimensions & Structure

• Box length: 35'-0"

• Box width: 8'-0"

• Box height: 7'-10"

• Gooseneck length: 8'-2"

Undercarriage

• GVWR: 16,000 lb

• Axles: Two 8,000 lb Dexter Torflex, 8-bolt hubs w/ 5/8" studs, 0° articulation

• Brakes: Electric/hydraulic, disc (8K)

• Tires: Cooper 245/70R17.5, LR-J

Tie Rings

• Interior: 12 | Exterior: 12

Front Tack / Rooms

• Front tack wall: Solid partition, full height & width, straight wall

• Primary door: 32" wide × standard height (RH)

• Floor: Carpet—floor, GN wall & GN deck

Stall / Load Space

• Stall area length (LH): 31'-0" | (RH): 31'-0"

• Width: 8'-0"

• Rear opening: 54" ramp with swing-around doors above; butterfly latch

• Access door: 32" access door w/ feed door & SBG, LOC: LH

• Feed doors: Head-side fold-down type, with safety bars

• Windows

• Center gate: Full gate, bars above

• Side ramp: 56" wide × 54" long with upper door & restraint strap

Lining & Mats

• Kick mat: 54" high, .090" PL, insulated—all around interior walls

• Floor mat: WERM Flooring (BLACK) installed at Cimarron

• Wall lining: Double wall & insulated at kick mats with .050 white above

Tack Storage

• Saddle racks: 4 adjustable pads; post type: removable

• Blanket poles: Adjustable on saddle-rack post

• Boot boxes / shelves

Special Requirements

1. Add recessed paddle latch on side access door

2. Extra divider location, straight load

3. Restraint bar, chest/butt bar

4. Window slider 19"×34" (stall area)

5. Storage rack for chest/butt bars

6. NOTE: Upper door above side ramp to have cam lock to hold open

7. Carpet-lined walls including insulation & lining

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**
